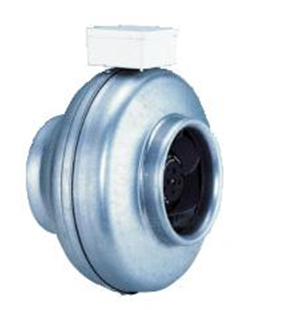

CASING
-
Rust-resistance pre-galvanized steel
-
High performance and low sound level
MOTOR
-
Unique design external rotor motor
IMPELLER
-
Backward curve centrifugal impeller with inlet guide vane
|
|
|
|
|
|

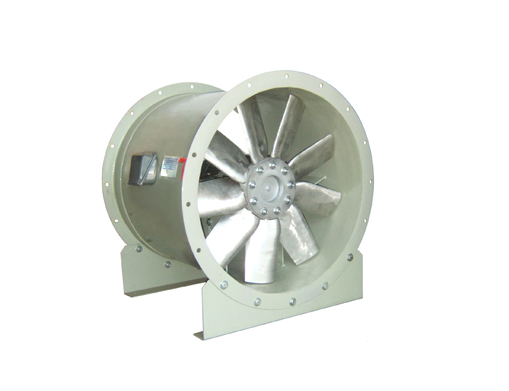

CASING / HOUSING
-
Hot dip galvanized steel for light & heavy
-
Steel with Epoxy coat
MOTOR
-
Class F and enclosure IP 55
IMPELLER
-
Hubs and blades are made of cast aluminium alloy, the aero dynamical profile guarantees high efficiency.
|
|
|
|
|
|
|
|
